VIEW RESIDENTIAL FLOOR PLAN LIBRARY
When you elect to “begin the process” of getting access to the plans, you will be connected to the Design Professional who prepared and owns the plans. This professional can work with you to prepare the plans for your unique property. However, challenging topography, soils, and site conditions may require additional design work outside of master planning. There are many steps to get a “site plan” ready for your property and the Design Professional will walk you through this. For more information, please email office@nccabuildingpros.com.
Step 1 – Select a design that you like.
Step 2 – Read and agree to the terms and conditions
Step 3 – Fill out your contact info and which design you like
Step 4 – NCCA will put you in contact with the Design Professional
Step 5 – Design Professional will work with you to create a site plan and plan submittal set
Step 6 – Design Professional will submit plans to the County for approval and permit issuance
These plans were previously approved by Nevada County Building Department but will need to be updated to meet current codes. If interested in one of these plans, the design professional who prepared the plans will guide you through the plan update and permit process.
The Residential Floor Plan Library is designed to help you save time and money in designing a home and getting permits
WILDFIRE VICTIMS
Lost your home in a wildfire?
The NCCA is ready to help you rebuild your home after a devastating loss due to a wildfire. Contact us today for low cost building plans and referrals to our best contractors and associates.
Residential Floor Plans
Christensen House/ADU
The Christenson home is a Single level Country style construction, 2 bedroom, 2 bath, 2 car garage open floor plan residence which can be modified to the owner’s needs both inside as well as outside. The main part of the house has a great open floor plan for the client's entertaining needs, front covered entry porch and a drive-through 2 car garage. This home can be an ADU.
-
Single level country style construction, 2 bedroom, 2 bath 1,192 sf floor area
Attached 450 sf 2 car garage
80 sf covered front porch
High Ridge Home
The High Ridge ADU home is a Single level Contemporary construction, 2-bedroom, 1-bath, single-car garage residence which can be modified to the owner’s needs both inside as well as outside. The main part of the house has a great open floor plan for the client’s entertaining needs.
-
Project description:
· Single level contemporary construction, 2 bedroom, 1 bath 1,140 sq. ft. main floor area
· Attached single-car garage, 327 sq. ft.
· Concrete covered patio, 278 sq. ft.
· Dual fireplace for inside & outside activities
· Front Open patio, 684 sq. ft.
Havens Home
The Havens home is a Single level Mountain Ranch style construction, 2 bedroom, 2 bath, 2 car garage open floor plan residence which can be modified to the owner’s needs both inside as well as outside. The main part of the house has a great open floor plan for the client's entertaining needs, front covered entry porch, and a rear covered deck.
-
Single level Mountain Ranch style construction, 2 bedroom, 2 bath 1,189 sf floor area
Attached 480 sq. ft. 2 car garage
192 sq. ft. covered rear deck
128 sq. ft. covered front porch

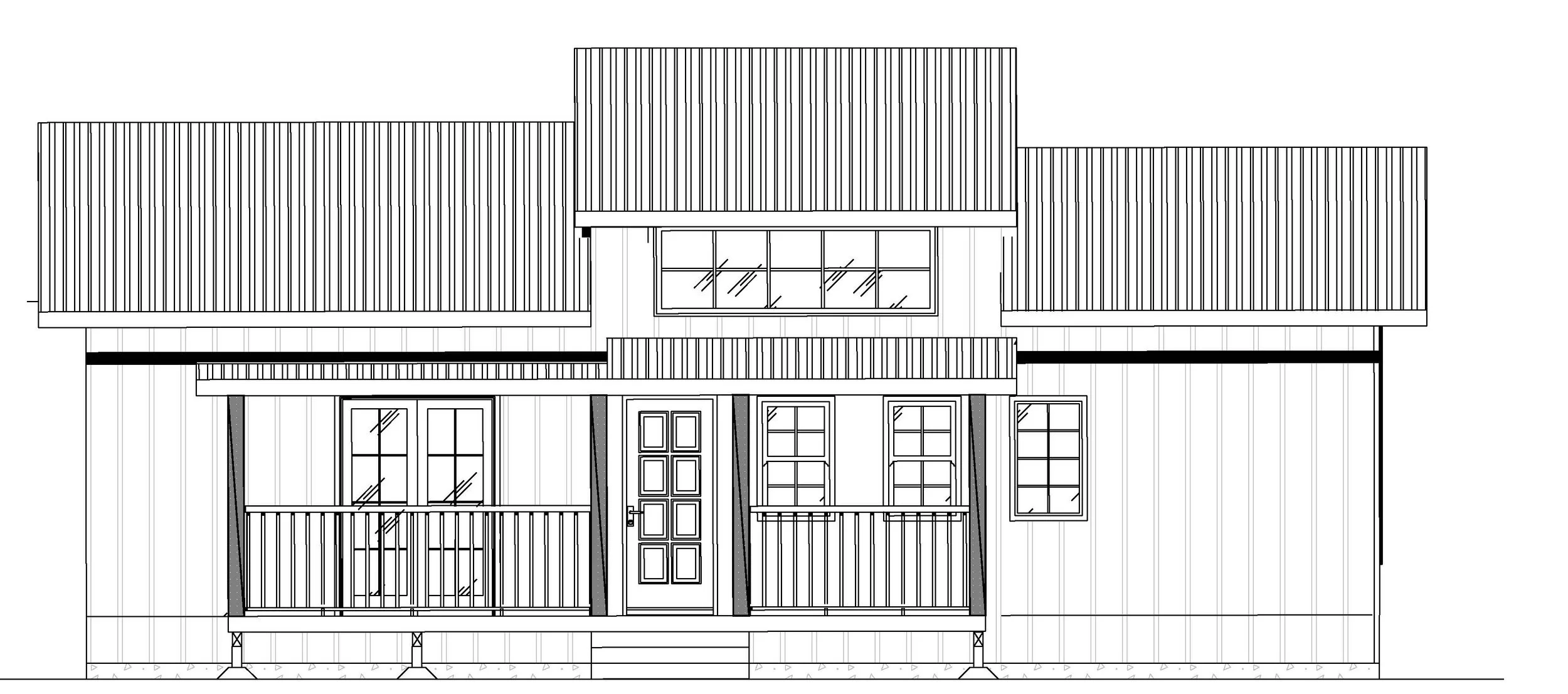

Voss Home
The Voss home is a Single level Ranch style construction, 1 bedroom, 1 bath, open floor plan residence which can be modified to the owner’s needs both inside as well as outside. The main part of the house has an open floor plan for the client's entertaining needs, front covered entry porch, and a rear-covered Porch.
The floor plan can easily be modified to add a 2nd bedroom additional space.
-
Single level ranch style construction, 1 bedroom, 1 bath 841 sf floor area
83 sf Front covered porch
184 sf rear covered porch
*This Plan is designed for a 29-pound snow load so there may be an extra cost for structural engineering modification for snow loads in certain areas.
Torrey Pines House
The Torrey Pines House is a wood-frame Single Story open floor plan home with 2 bedrooms and 1 bathroom. The house is designed to be situated on a slab-on-grade foundation and features an extensive covered patio. This home also qualifies as an Accessory Dwelling Unit. It is a 1,000 sq. ft., 2 Bedrooms, 1 Bath, with a 144 sq. ft. covered porch.
Malakoff House
Malakoff is a wood-frame Single Story open floor plan home with 2 bedrooms and 2 bathrooms. The house is designed to be situated on a raised foundation. In addition, the plan includes a 2-1/2 car detached garage. The plan can be modified as required by the Owner.
-
Single Story House with 2 Bedrooms, 2 Baths- 1,556 sq. ft.
Detached Garage- 768 sq. ft.
Raised Rear Deck with Stairs- 250 sq. ft.
Front Covered Porch- 144 sq. ft.
Tilden House
The Tilden House is a wood-frame Single Story open floor plan home with 2 bedrooms, 1 bathroom, and an office. The house is designed to be situated on a raised foundation and features an entry deck with steps.
-
Single Story House with 2 Bedrooms, 1 Bath, Office- 1,210 sq. ft.
Front Covered Entry 80 sq. ft.
Front Covered Porch- 20 sq. ft.
Cannon Home
The Cannon ADU is a Single level slab on grade Craftsman-style construction, 2 bedroom, 2 bath, wrap-around covered porch, and open floor plan residence which can be modified to the owner’s needs both inside as well as outside. The main part of the house has a great open floor plan for the client’s entertaining needs. This plan has no Garage attached and was designed to have a detached garage. The construction method is quite unique using conc ICF block walls or can be modified to build a standard stud framing method.
-
Single level craftsman style construction, 2 bedroom, 2 bath 1,197 sq. ft. floor area
2,055 sq. ft. covered wrap-around porch.
